Beaver Colour Coded Screw Pin Bow Shackles

Product Code: MH2423M

Products to compare:
Comparing Products
Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

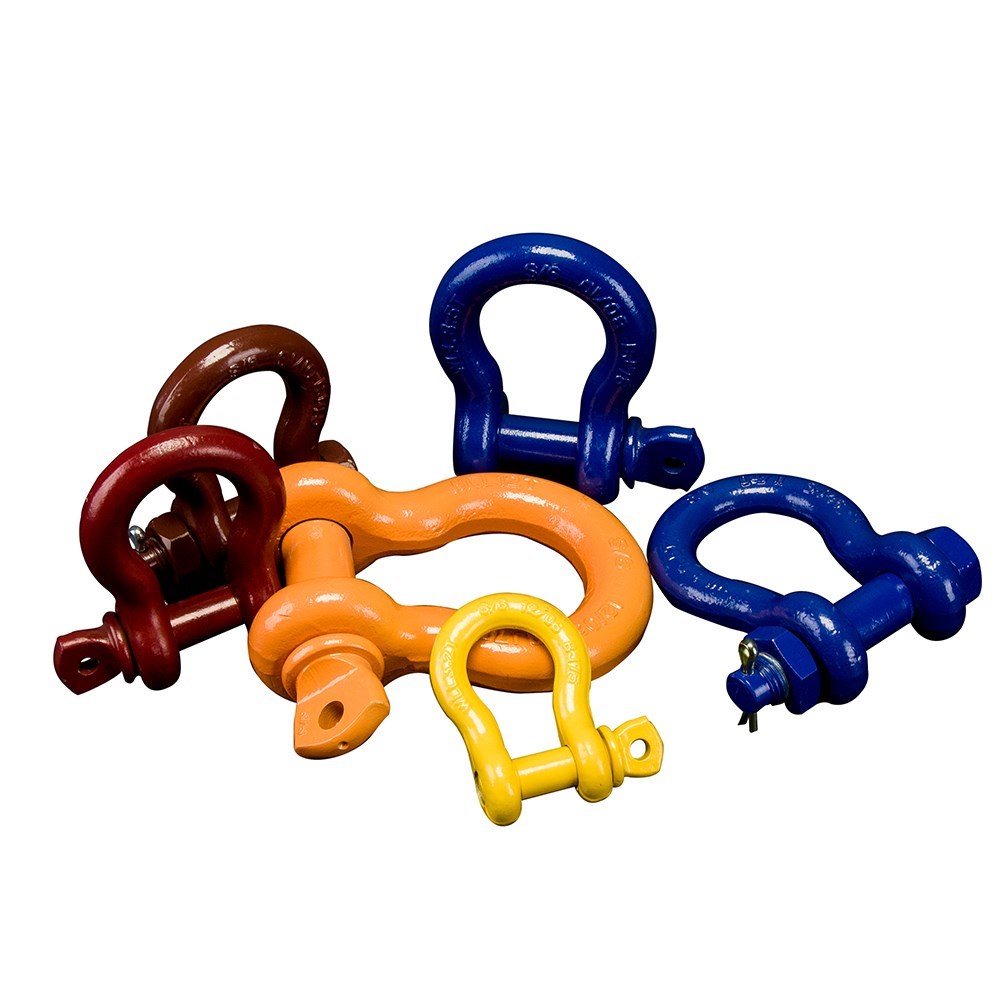

Beaver Alloy grade S colour-coded shackles have been developed in accordance with AS 2741. These shackles are suitable for mining, resource, and construction applications. The Beaver colour-coded shackles take the guess work out of choosing the right capacity when matching lifting components.

Product Code Size WLL Shackle Colour

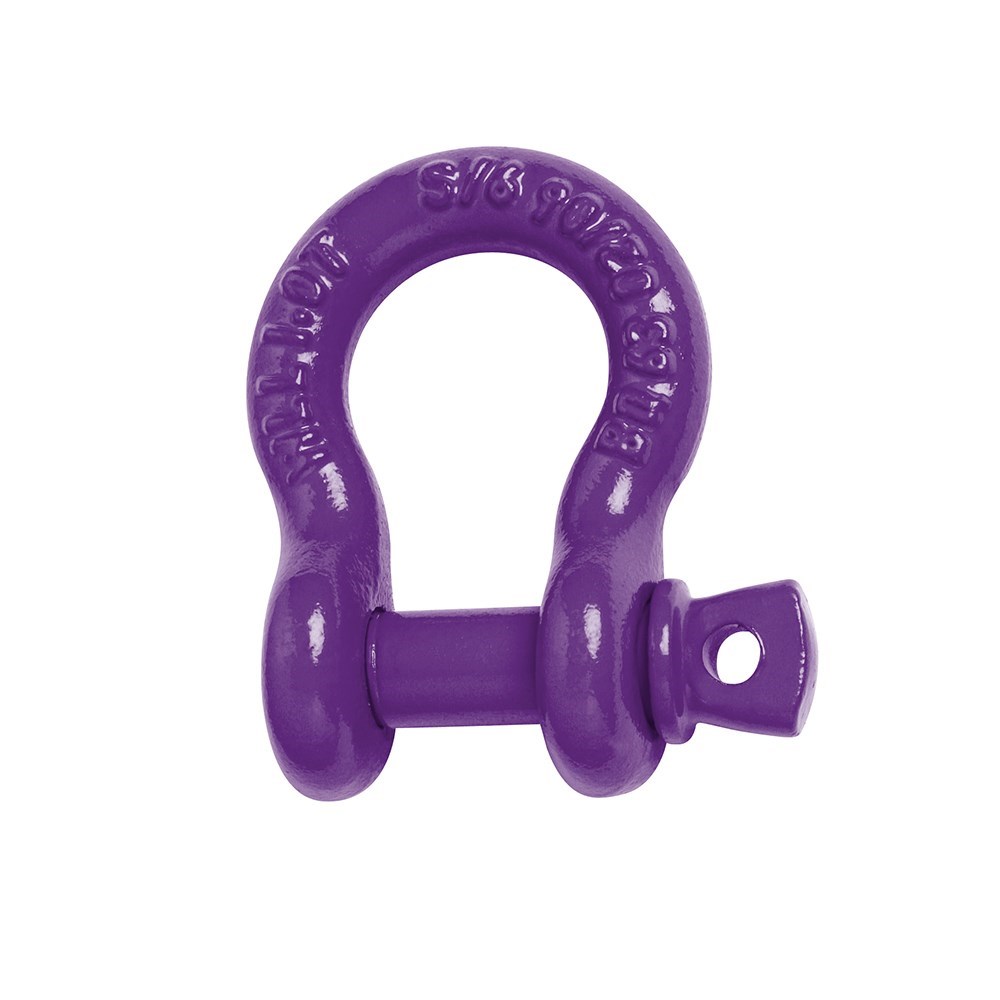

242310M 10mm x 11mm 1t Violet

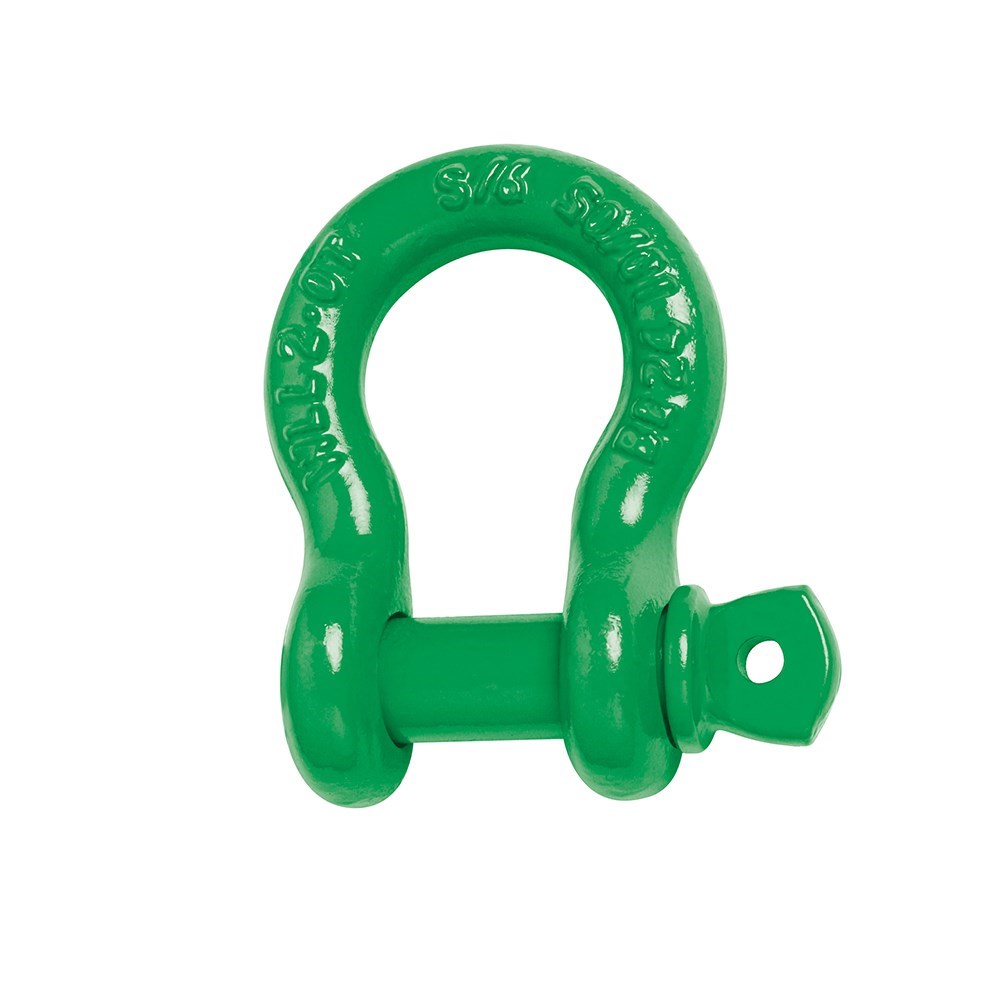

242313M 13mm x 16mm 2t Green

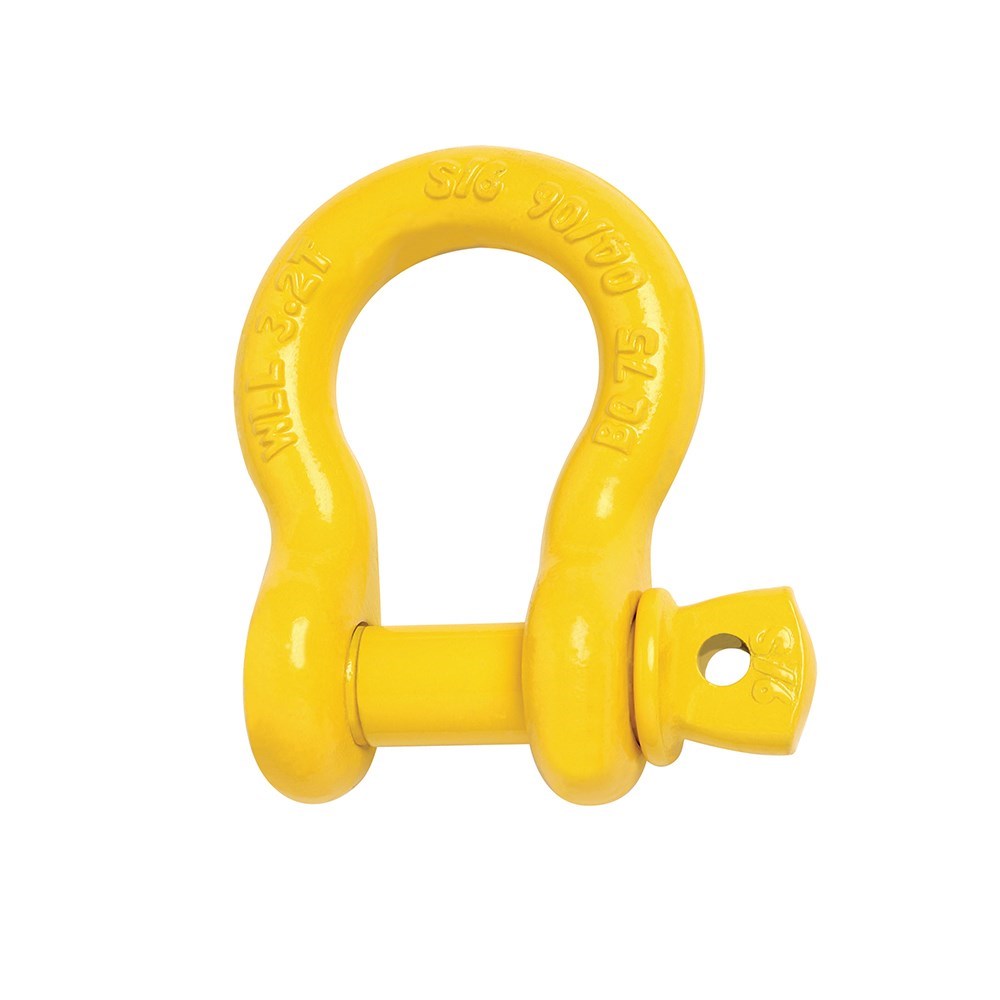

242316M 16mm x 19mm 3.2t Yellow
242319M 19mm x 22mm 4.7t Grey
242322M 22mm x 25mm 6.5t Brown
242325M 25mm x 29mm 8.5t Blue

All Beaver grade S shackles are easily identified with prominent stamping indicating MM/YY, for quick reference of the products manufacture and working load limit. Test certificates are readily available on request.

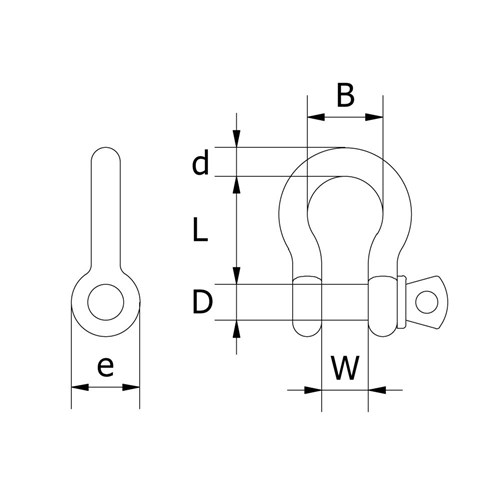

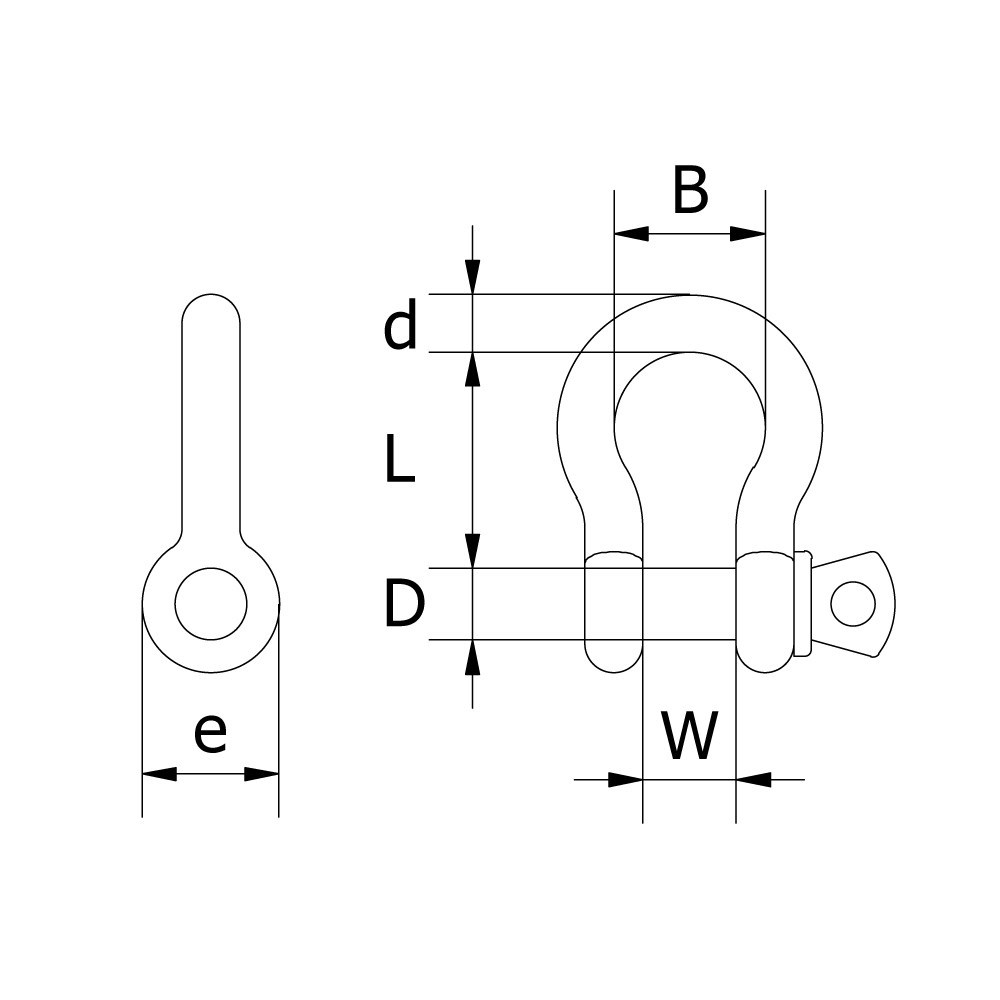

Product Code Size Diameter Pin Diameter (D) Inside Width (W) Inside Length (L) Diameter Boss (e) Width of Bow (B)
242310M 10mm x 11mm 10mm 11mm 17mm 37mm 25mm 26mm
242313M 13mm x 16mm 13mm 16mm 21mm 48mm 33mm 33mm
242316M 16mm x 19mm 16mm 19mm 27mm 61mm 40mm 43mm
242319M 19mm x 22mm 19mm 22mm 32mm 72mm 48mm 51mm
242322M 22mm x 25mm 22mm 25mm 37mm 84mm 54mm 58mm
242325M 25mm x 29mm 25mm 29mm 43mm 95mm 60mm 68mm

For more information on our materials handling range, please contact our Customer Care team.

Warranty:

Returns will be accepted for faulty or defective goods and any other non-excludable obligations of Beaver Brands set out in The Competition and Consumer Act 2010, Schedule 2, Australian Consumer Law or similar State and Territory legislation.

Returns are subject to customer following Beaver Brands' recommended care and maintenance instructions which can be found on the garments swing tag. Beaver Brands garments found to be faulty will be replaced at no cost.

Items that are sourced from 3rd party distributors will carry their own manufacturer’s warranty.

Returns/Exchange Policy:

Beaver Brands to be notified within 7 days from receipt of order for any products that are to be returned/exchanged.

Before any items are returned the following steps need to be actioned:

  • Complete Return Authorisation Form (RAF)
  • Obtain a Return Authorisation Number
  • Forward the garments with the (RAF) form to the specified Beaver Brands branch
  • Goods will be inspected and credited off your account once approved

Please Note: Beaver Brands must approve all returns before they are forwarded back to the designated branch. These authorised returns must be freight prepaid and will only be accepted if they are in a saleable condition. Products specifically purchased, manufactured, machined or cut to size or to your company’s specification are not returnable unless prior approval has been given.

Please contact customercare@beaver.com.au to find out your FIS threshold.

Orders typically ship within 1 working day from our National Distribution Centre located in Erksine Park, NSW.

Technical Specifications
Category Beaver
Category Bow Shackles
Brand Material Handling
